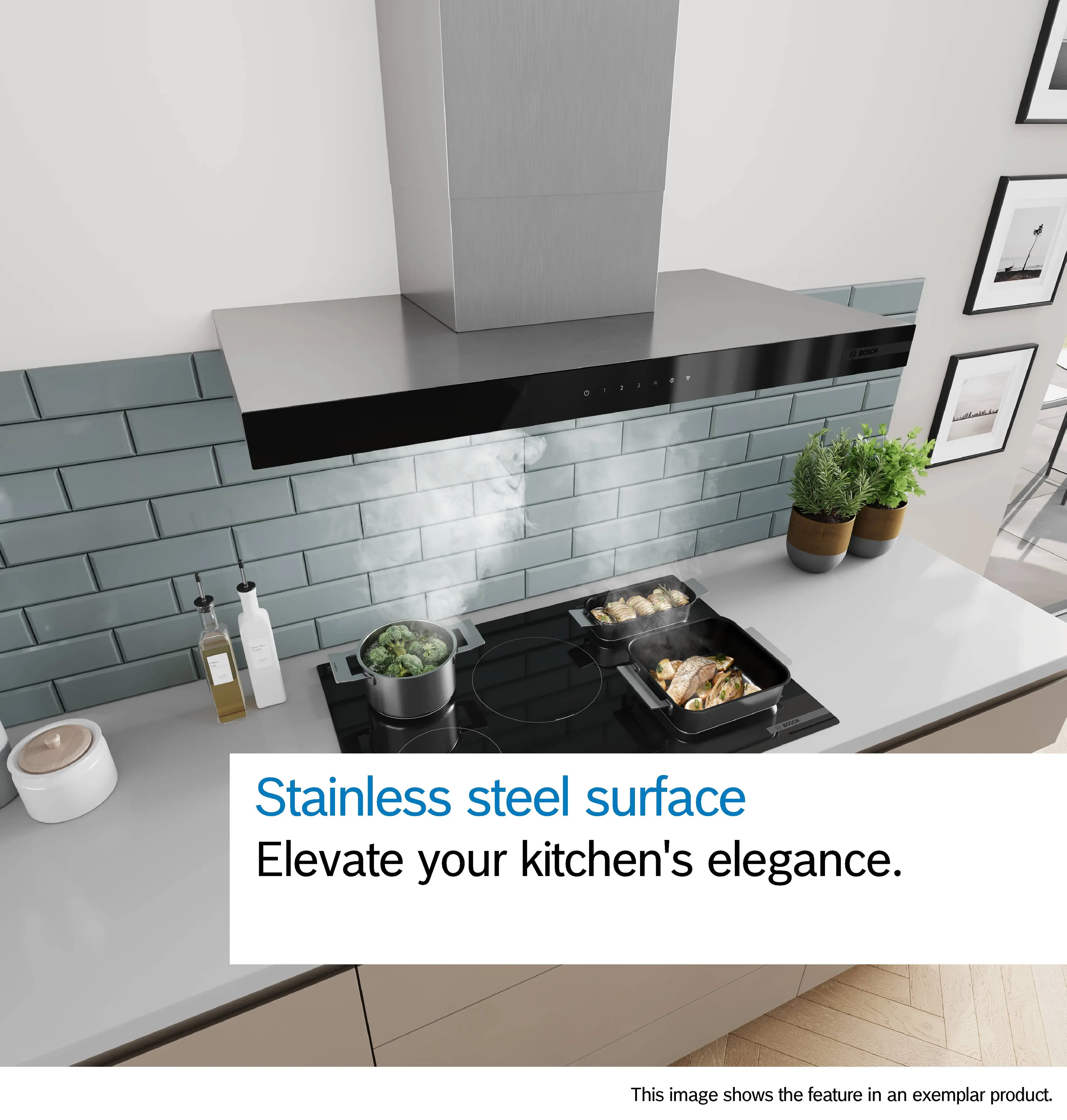

Series 6 Wall-mounted canopy rangehood 90 cm Stainless steel lookDWB97DN30A
DWB97DN30A
5 Year Warranty
1 / 0
Series 6 Wall-mounted canopy rangehood 90 cm Stainless steel lookDWB97DN30A
DWB97DN30A
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
5 Year Warranty
5 Year Warranty Promotion
Unlock an additional 3 years! Purchase any Bosch Series 6 or 8 kitchen or laundry appliance and enjoy a total of 5 Years Warranty.
Series 6 Wall-mounted canopy rangehood 90 cm Stainless steel lookDWB97DN30A
DWB97DN30A
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
5 Year Warranty
5 Year Warranty Promotion
Unlock an additional 3 years! Purchase any Bosch Series 6 or 8 kitchen or laundry appliance and enjoy a total of 5 Years Warranty.
Technical Overview
Installation type
Wall-mounted
Width
90 cm
Cooktop to hood control
Yes
Noise level
56 dB(A) re 1 pW
PerfectAir
No
Operating Mode
Convertible
Max. air extraction
399 m³/h
Boost position air extraction
699 m³/h
Key Features
Quality You Can Trust
Specifications
Width
90 cm
Installation type
Wall-mounted
Operating Mode
Convertible
Total power of the motors
105 W

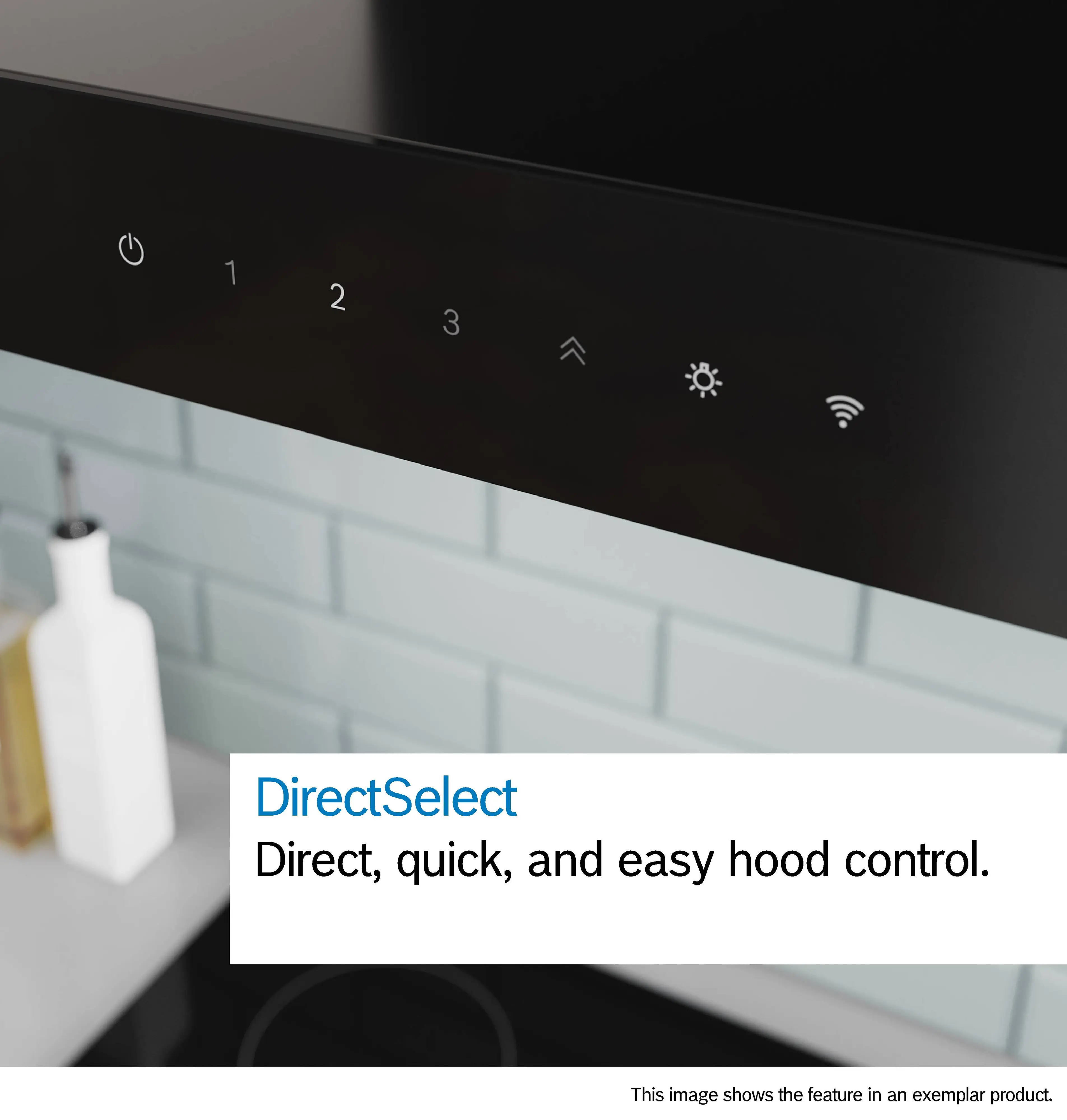

Type of control setting and signalling devices
touch control, Via app
Number of speed settings
3-stages + intensive setting
Max. air extraction
399 m³/h
Boost position air extraction
699 m³/h
Sound power at max. speed (2010/30/EC)
56 dB
Sound power boost (2010/30/EC)
68 dB
Max. air recirculation
410 m³/h
Boost position output recirculating
677.0 m³/h
Noise level using maximum speed (recirculation)
64 dB
Noise level using power boost (recirculation)
73 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
A++
Total annual energy consumption
24.5 kWh/annum
User manuals included
[EN]
Voltage
220-240 V
Height of the appliance
60 mm
Width of the appliance
898 mm
Depth of the product
500 mm
Dimensions of the packed product (HxWxD)
700x580x1020 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob (EU)
600 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
16.8 kg
Handle
Not applicable
Appliance height exhaust air max
895 mm
Appliance height exhaust air min
635 mm
Appliance height recirculating max
1080 mm
Appliance height recirculating min
803 mm
1 / 0
PerfectAir
No

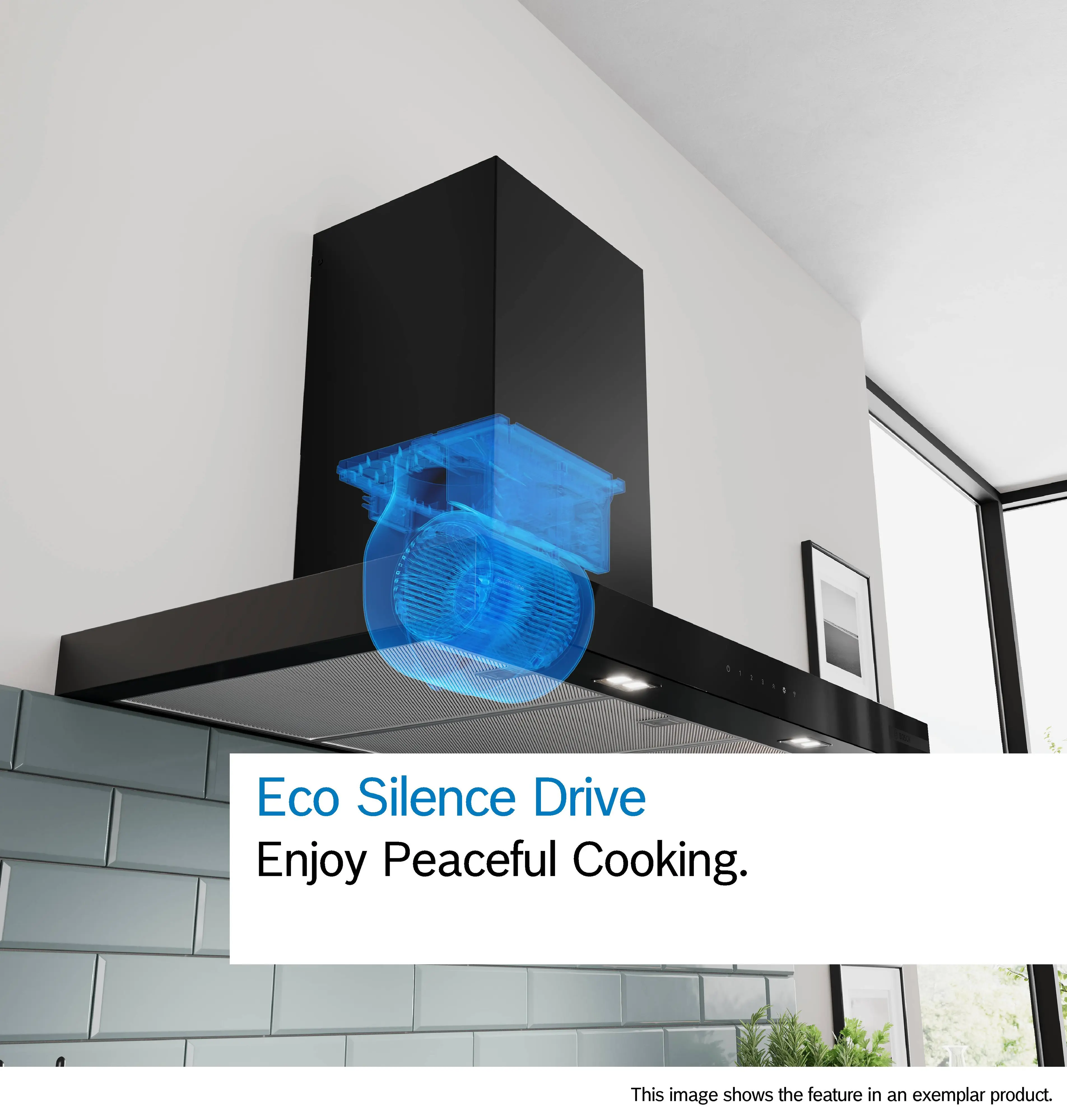

SilentPowerDrive - efficient and extra silent
Yes
Extremely quiet appliances
Yes
Clean filter reminders
No

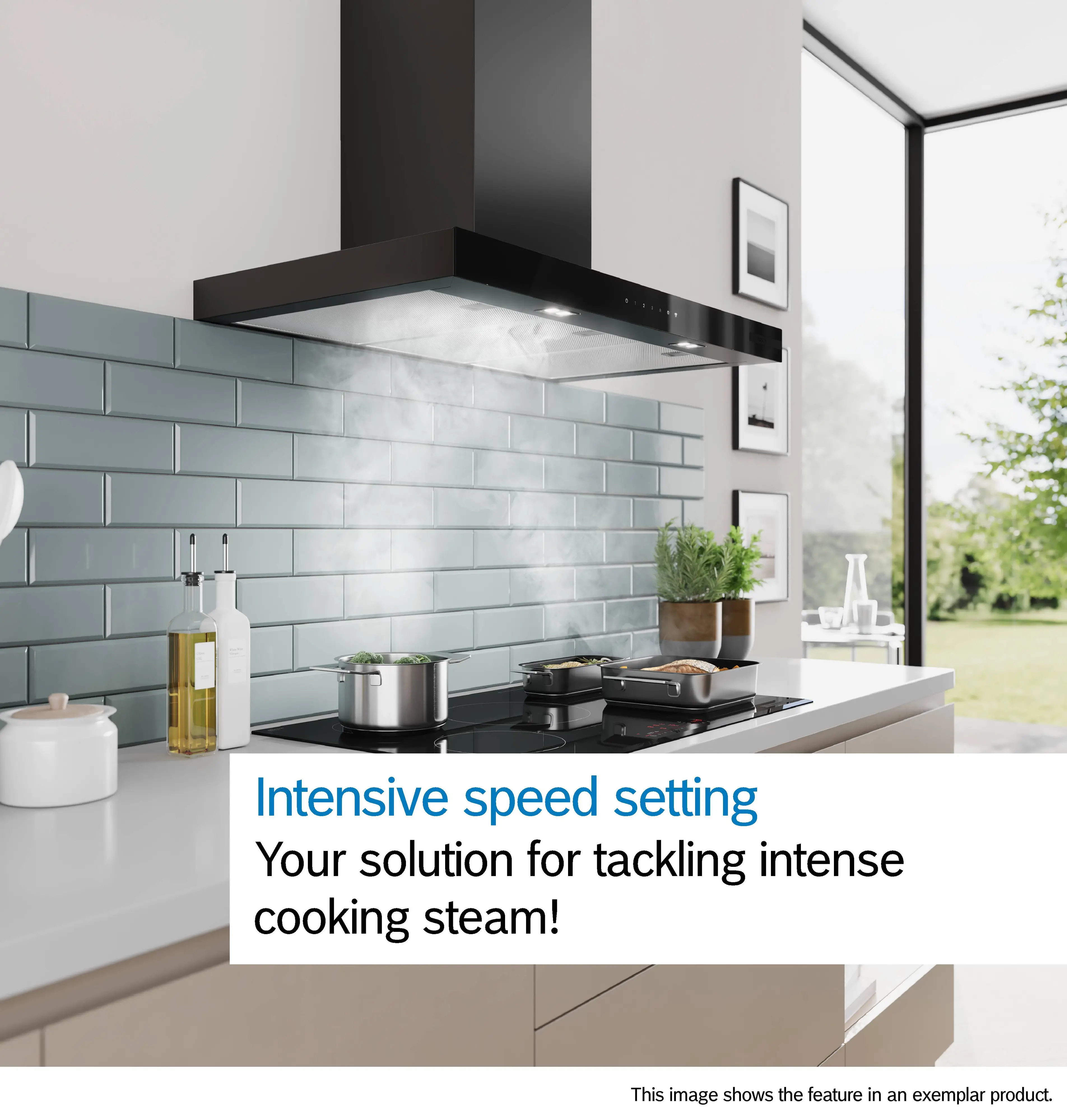

Boost position
Yes
Delay Shut off modes
Yes
Remote control
No

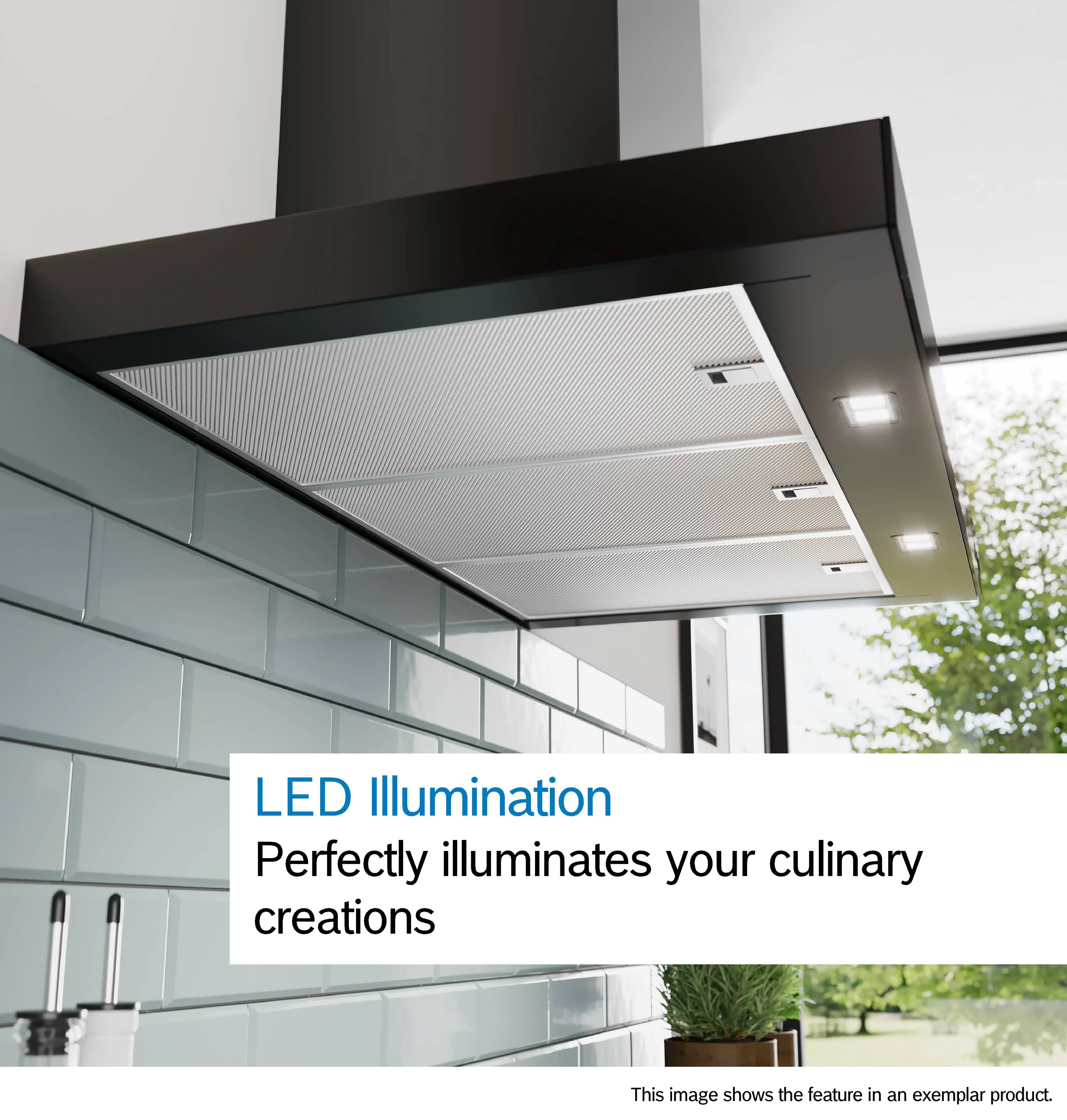

Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
461 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
Yes
Light colour tunable by Home Connect
Yes
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
Yes

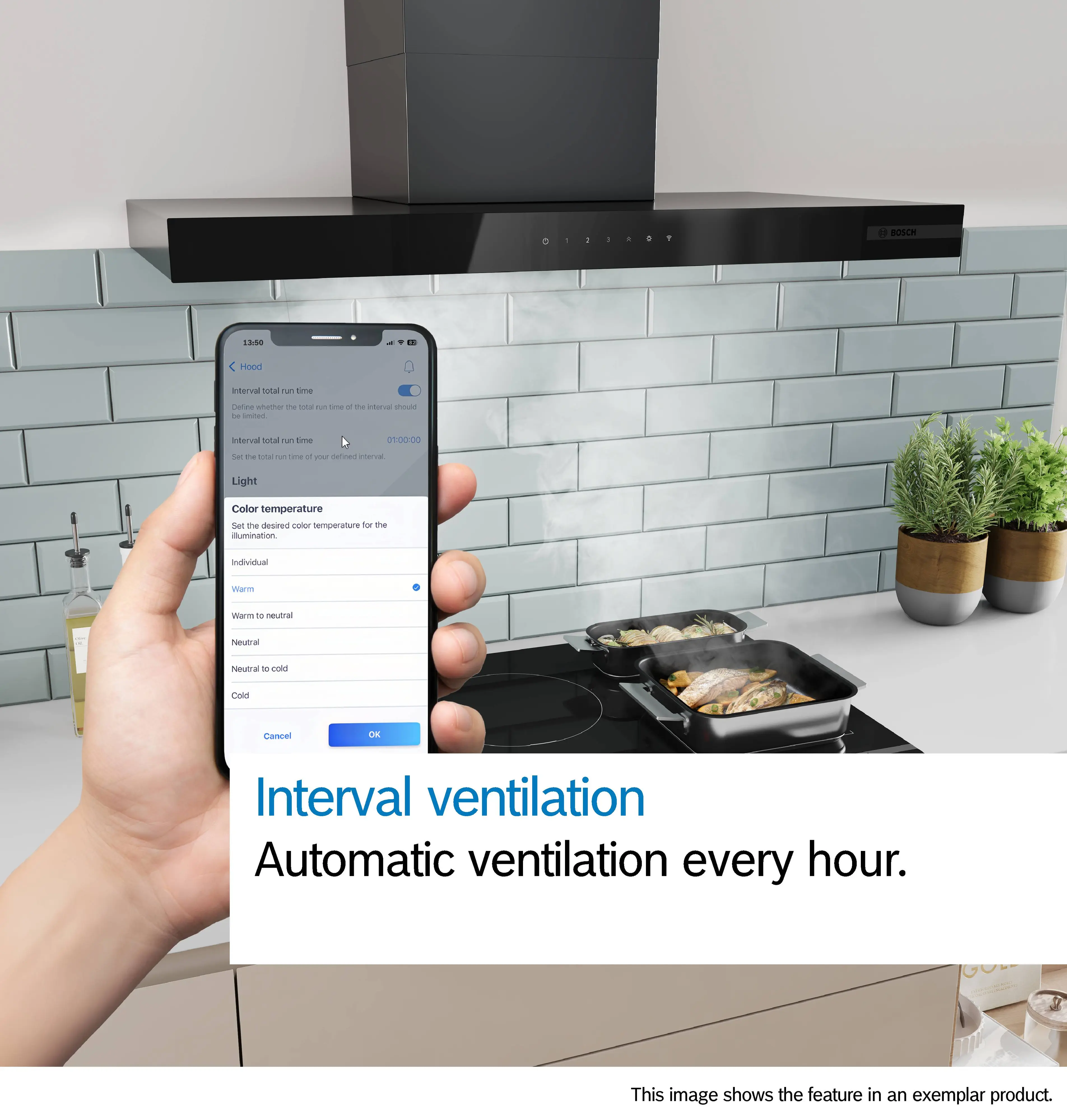

Home Connect Features
iService Remote, Remote Monitoring and Control
Cooktop to hood control
Yes

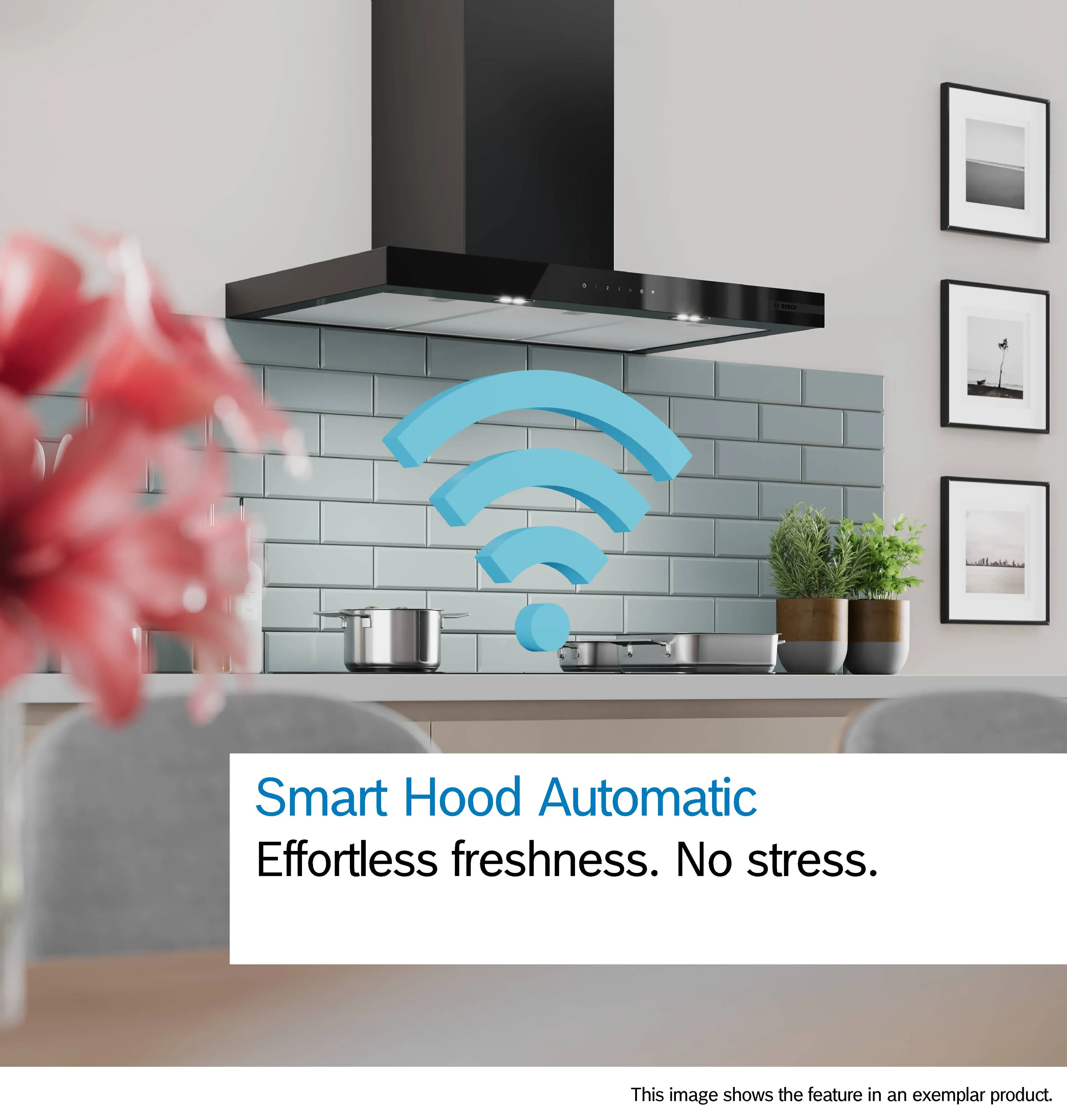

Smart Hood Automatic
Yes, with all hobs with same feature and connected Home Connect account
