Technical Overview
Installation type
Wall-mounted
Width
90 cm
Cooktop to hood control
No
Noise level
65 dB(A) re 1 pW
PerfectAir
No
Operating Mode
Convertible
Max. air extraction
454 m³/h
Boost position air extraction
739 m³/h
Key Features
Quality You Can Trust
Specifications
Width
90 cm
Colour
Stainless steel
Installation type
Wall-mounted
Operating Mode
Convertible
Total power of the motors
250 W
Type of control setting and signalling devices
touch control
Number of speed settings
3-stages + intensive setting
Max. air extraction
454 m³/h
Boost position air extraction
739 m³/h
Sound power at max. speed (2010/30/EC)
65 dB
Sound power boost (2010/30/EC)
74 dB
Max. air recirculation
404 m³/h
Boost position output recirculating
499 m³/h
Noise level using maximum speed (recirculation)
72 dB
Noise level using power boost (recirculation)
76 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
B
Total annual energy consumption
62.5 kWh/annum
User manuals included
[EN]
Voltage
220-240 V

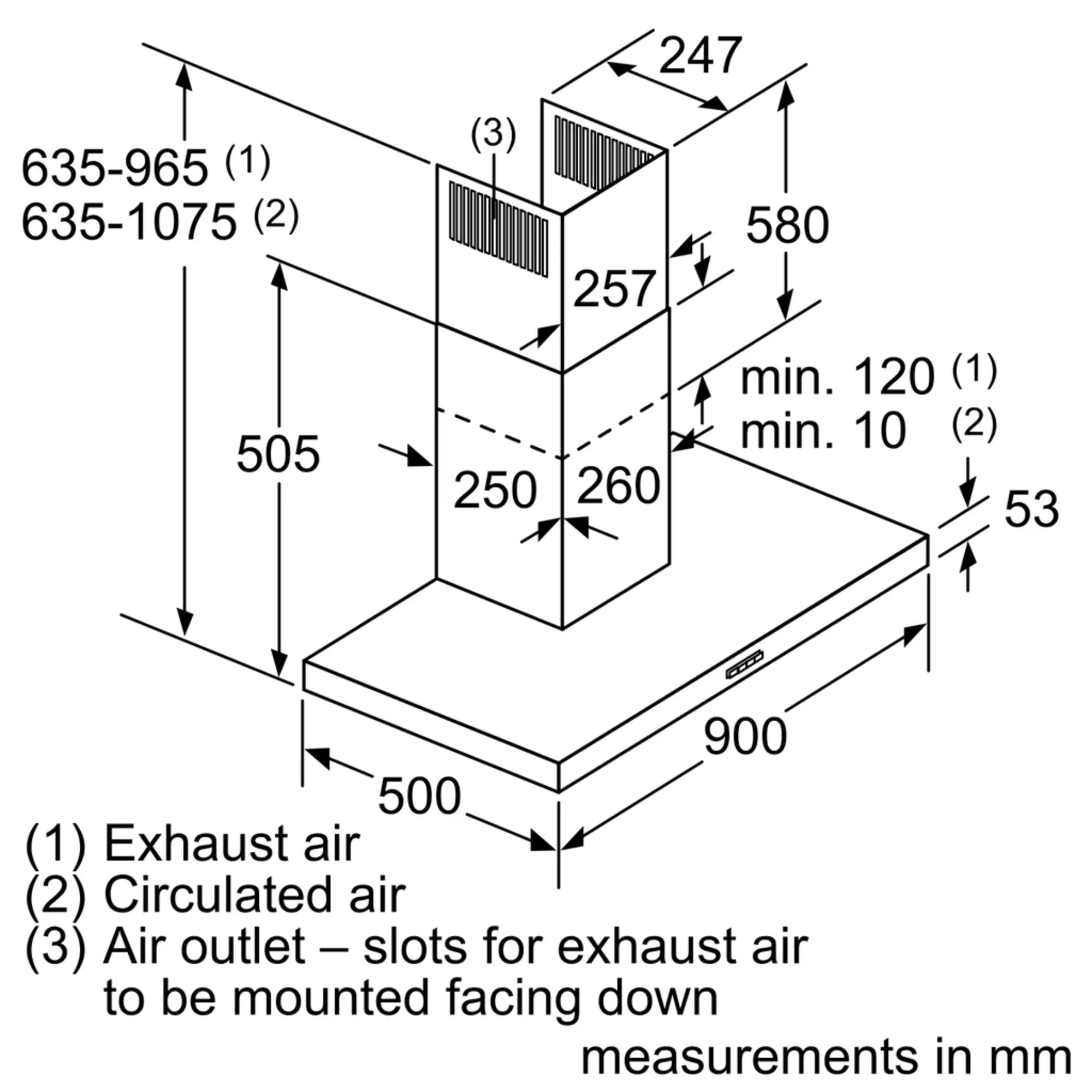

Height of the appliance
53 mm
Width of the appliance
900 mm
Depth of the product
500 mm
Dimensions of the packed product (HxWxD)
490x650x1030 mm
Height of the chimney
583-912/583-1022 mm

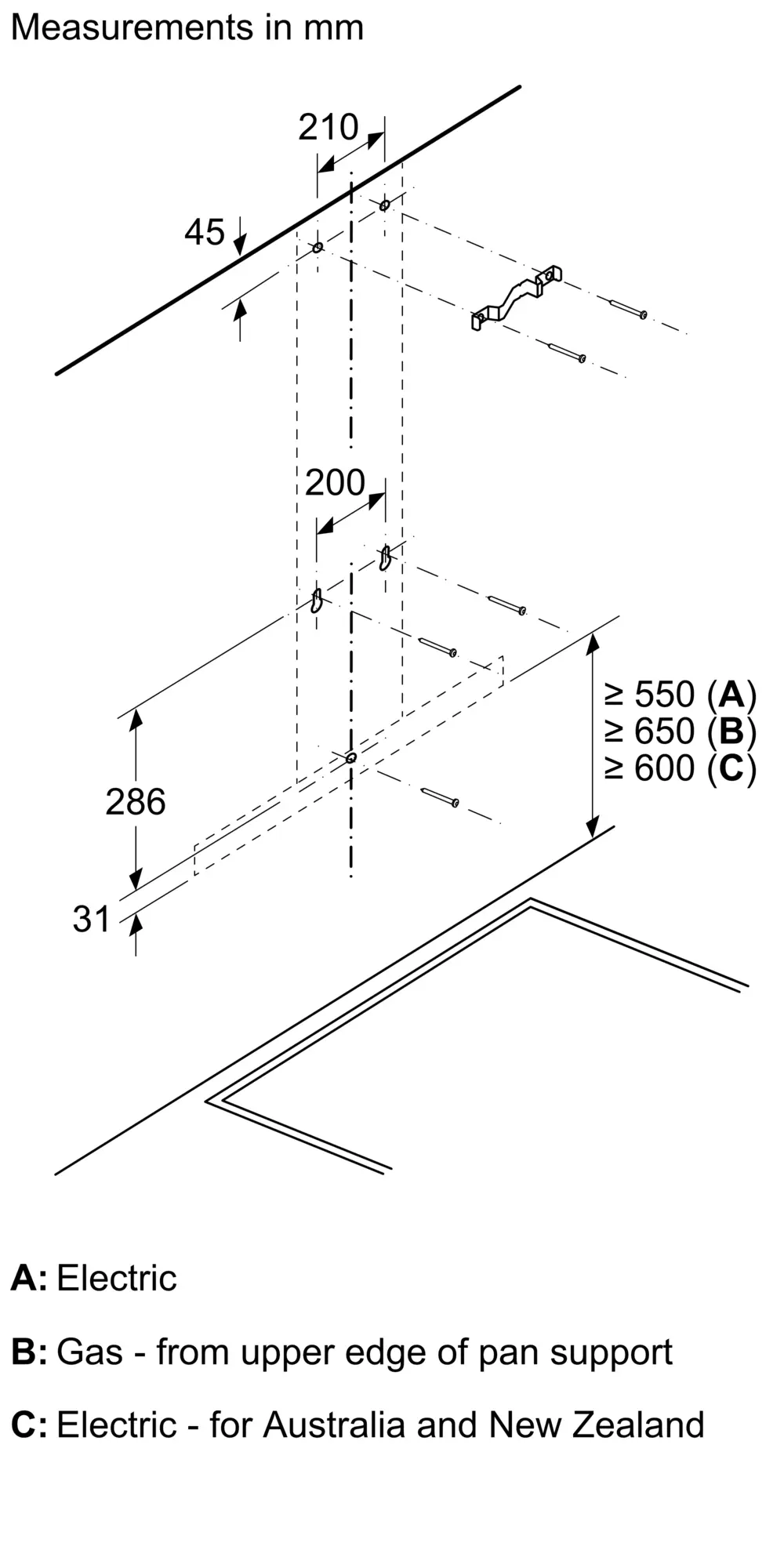

Minimum distance above an electric hob (EU)
550 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
120 / 150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
13.8 kg
Handle
Not applicable
Appliance height exhaust air max
965 mm
Appliance height exhaust air min
635 mm
Appliance height recirculating max
1075 mm
Appliance height recirculating min
635 mm
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
No
Extremely quiet appliances
No
Clean filter reminders
No
Boost position
Yes
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
214 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
No
Light colour tunable by Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop to hood control
No
Smart Hood Automatic
No
