Series 2 Integrated Design Hood 60 cm BlackDBB63BC60A
DBB63BC60A
1 / 0
Series 2 Integrated Design Hood 60 cm BlackDBB63BC60A
DBB63BC60A
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Series 2 Integrated Design Hood 60 cm BlackDBB63BC60A
DBB63BC60A
Where to buy
Show all online dealersBosch has a commercial relationship with this retailer and may receive a commission for products purchased through their website. You accept the privacy policy when you click "Visit Retailer Shop" or the retailer's logo.
Technical Overview
Installation type
Built-in
Width
60 cm
Cooktop to hood control
No
Noise level
65 dB(A) re 1 pW
PerfectAir
No
Operating Mode
Convertible
Max. air extraction
384 m³/h
Key Features
Quality You Can Trust
Specifications
Width
60 cm
Colour
Black
Installation type
Built-in
Operating Mode
Convertible
Total power of the motors
90 W
Type of control setting and signalling devices
Button
Number of speed settings
3
Max. air extraction
384 m³/h
Sound power at max. speed (2010/30/EC)
65 dB
Max. air recirculation
291 m³/h
Noise level using maximum speed (recirculation)
66 dB
Grease filter material
Washable stainless steel
Energy efficiency rating
N/A
Total annual energy consumption
56.1 kWh/annum
User manuals included
[EN]
Voltage
220-240 V
Height of the appliance
60 mm
Width of the appliance
598 mm
Depth of the product
298 mm
Dimensions of the packed product (HxWxD)
500x580x720 mm
Height of the chimney
GENERAL.N_A mm
Minimum distance above an electric hob (EU)
600 mm
Minimum distance above a gas hob
650 mm
Diameter of air outlet
150 mm
No-return airflow flap
No
Length electrical supply cord
130 cm
Net weight
7.1 kg
Handle
Not applicable
Appliance height exhaust air max
340 mm
Appliance height exhaust air min
340 mm
Appliance height recirculating max
340 mm
Appliance height recirculating min
340 mm

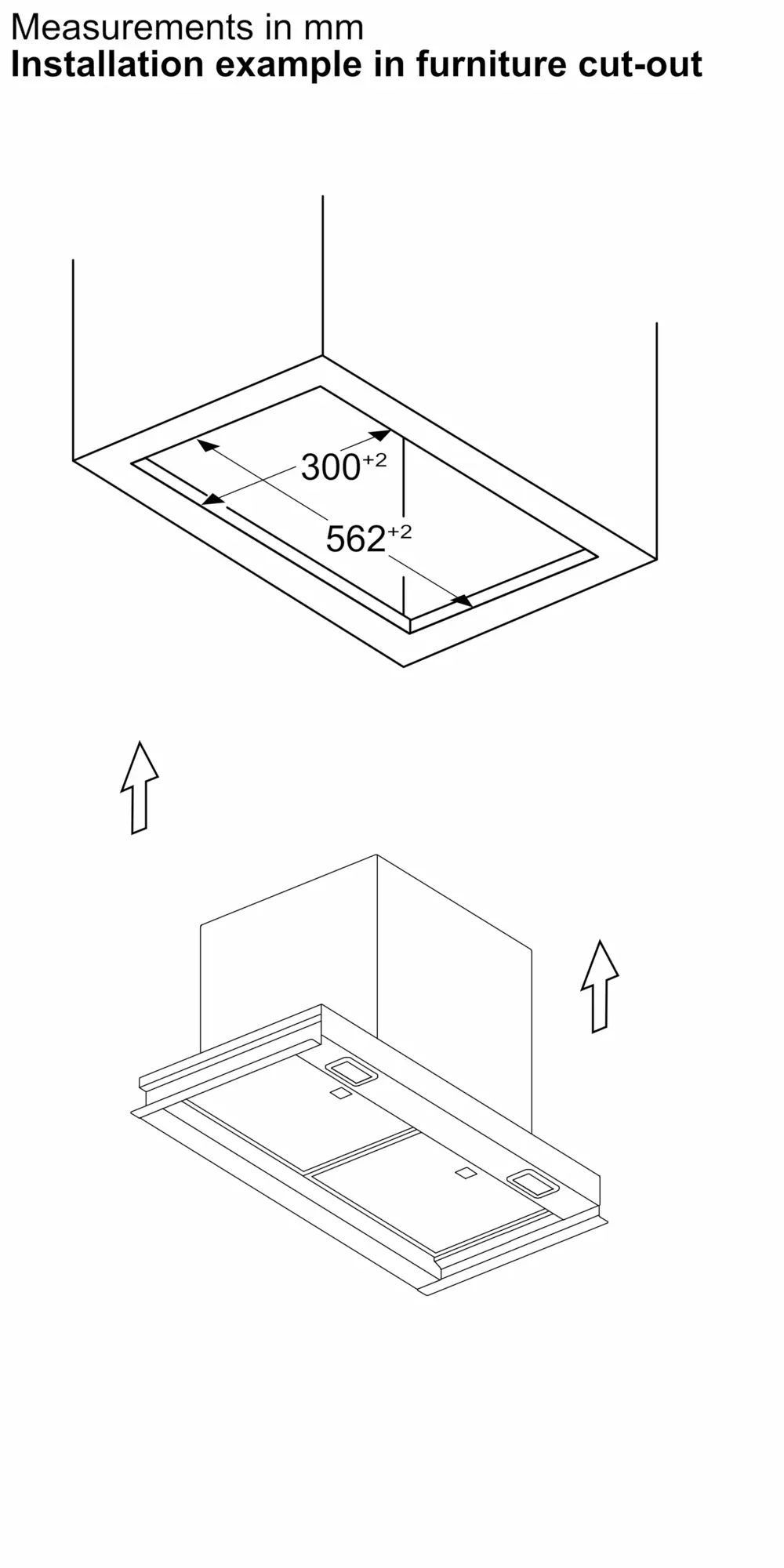

Maximum width for installation
560 mm
Minimum width for installation
560 mm
Depth for installation
300 mm
1 / 0
PerfectAir
No
SilentPowerDrive - efficient and extra silent
No
Extremely quiet appliances
No
Clean filter reminders
No
Boost position
No
Delay Shut off modes
No
Remote control
No
Type of lamps used
LED
Number of lights
2
Total power of the lamps
GENERAL.N_A W
Total luminance
316 lux
Colour temperature
Neutral (3.500 K)
Illumination type softlight
No
Light colour tunable by Home Connect
No
emotionLight Pro
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Cooktop to hood control
No
Smart Hood Automatic
No
