Technical Overview
Dimensions (HxWxD)
594x896x570 mm
Display control
White LED display with control dial
Cleaning system
Pyrolytic + Cleaning Assistance
Steam technology
Not applicable
Sensors
Not applicable
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Plug type
No plug (electrical connection by licensed electrician)
Home Connect Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
Key Features
Specifications
Where can the appliance be installed?
Base cabinet, high cupboard installation
Are some hobs controls integrated?
No
Which kind of cooktops can be controlled
Not applicable
Main colour of product
Stainless steel
Door colour
Metallic, Black
Color / Material panel
Stainless steel
Display control
White LED display with control dial
Number of heating modes & (Microwave) combination heating modes
10
Cooking method
Defrost, Full width grill, Rotisserie, Hot Air Standard, Conventional heat, Pizza setting, Bottom heat, Hot air grilling, Circulating air-Eco, Circulating air
Range of temperature (°C)
50-280 °C
Steam technology
Not applicable
Cleaning system
Pyrolytic + Cleaning Assistance
Telescopic racking system
Level-independent clip rails - for safe insertion and removal of accessories on any level
Door hinge
Drop down door
Usable volume (of cavity) - NEW (2010/30/EC)
112 l
Energy efficiency rating
A+
Safety device
Door lock, Child lock
Included accessories
1 x enamel baking tray, 1 x rotary spit, 1 x insert grid, 2 x combination grid, 1 x universal pan

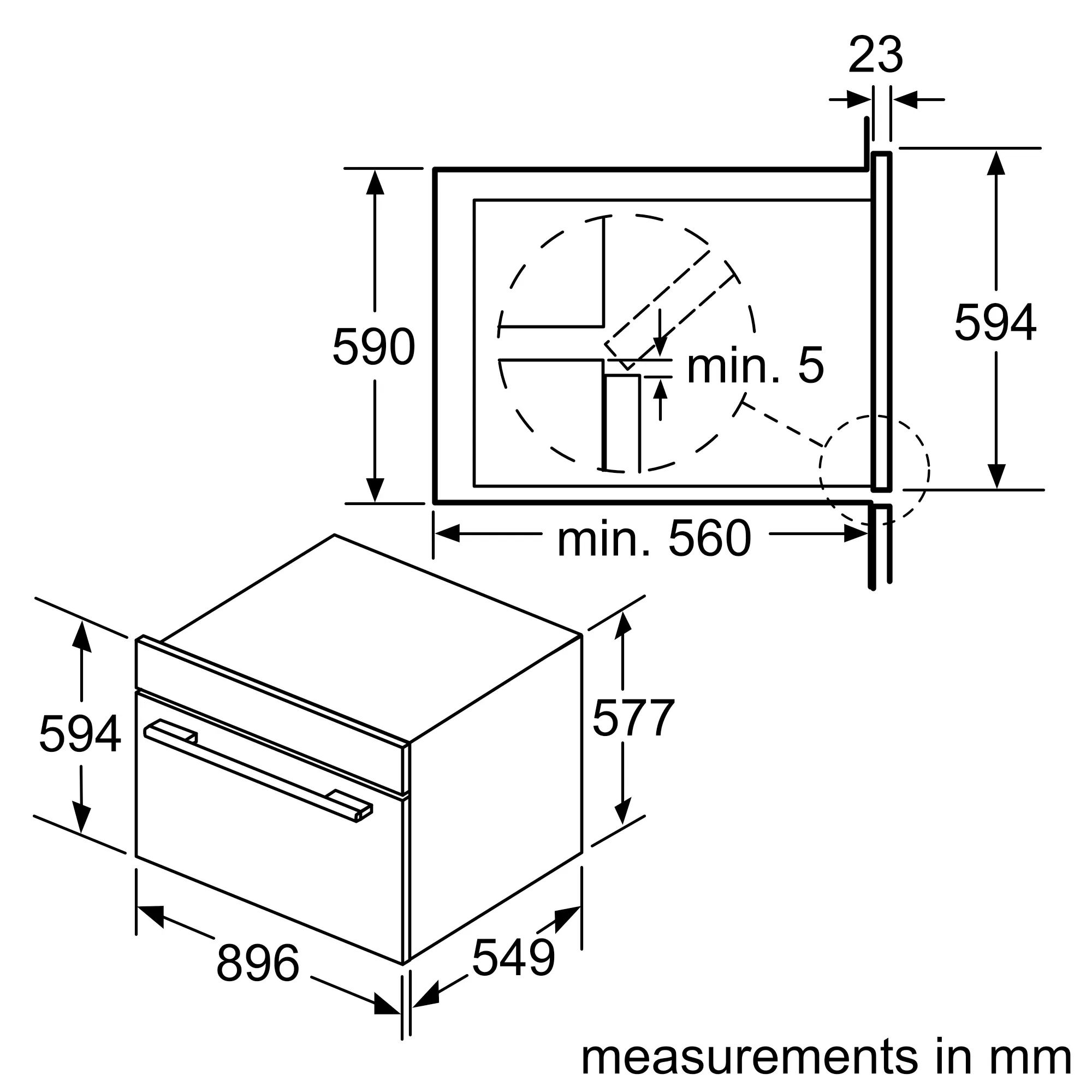

Dimensions (HxWxD)
594x896x570 mm
Dimensions of the packed product (HxWxD)
690x968x680 mm

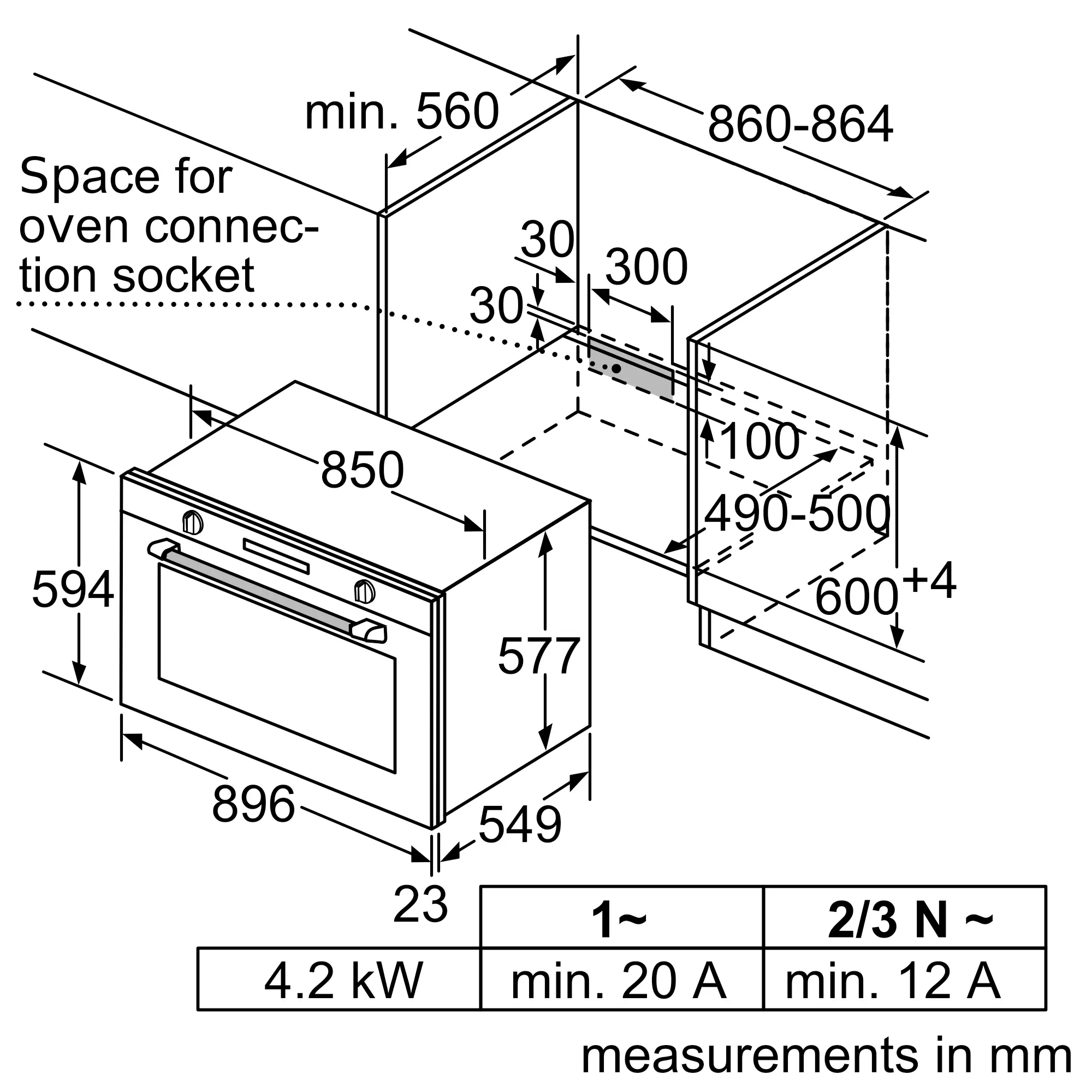

Minimum height for installation
600 mm
Maximum height for installation
604 mm
Minimum width for installation
860 mm
Maximum width for installation
864 mm
Depth for installation
560 mm
Net weight
63.4 kg
Length electrical supply cord
115 cm
1 / 0
Plug type
No plug (electrical connection by licensed electrician)
Type of connecting cable
1-phase, 2-phase, 3-phase
Length electrical supply cord
115 cm
Voltage
220-240 V
Connection rating
4200 W
Fuse protection
12; 20 A
User manuals included
[EN]
coolStart
No
Fast preheat
Yes
Pizza setting
Yes
Crisp function
No
Air Fry function
No
Sensors
Not applicable
Hotair
hot air
Automatic door opening via voice control
No
Home ConnectFootnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.
No
