Serie | 6 Built-under dishwasher 45 cm Stainless steel SPU68M05AU


ActiveWater 45 slimline - 4 Star WELS and 3 Star Energy.

Highlights

Need perfect wash results fast? SpeedPerfect is the answer.

The SpeedPerfect® wash option reduces the wash program time by up to 50% for the fastest wash possible – perfect for when time is of the essence.*

*On select models this option is available as VarioSpeed.

Want even more flexibility? No worries, VarioDrawer has you covered.

VarioDrawer is an extra handy third loading level where cutlery, kitchen utensils and espresso cups can be perfectly separated for optimum cleaning and drying results.

Delay wash programs to start when you are ready.

With the time delay function, you can delay the start time of the selected wash program. This provides you greater convenience to operate the appliance when it suits you - be it day or night. After the program starts, the remaining time is displayed.

LoadSensor adjusts the water level for optimum wash results.

The LoadSensor intelligently detects the amount of dishes that are loaded into the dishwasher and adjusts the amount of water used. Bigger loads need more water, while smaller loads require less. The load sensor ensures optimal water usage throughout the wash cycle to save water and electricity, and for optimum wash results.

IntensiveZone: effectively cleans pots and pans at the press of a button.

The IntensiveZone function transforms the entire bottom basket into a power cleaning zone, by increasing the water pressure in the bottom basket, saving you the chore of scrubbing heavily soiled pots and pans.

AquaSensor™: stain detection for brilliantly clean dishes.

The AquaSensor™ helps you save more water as it measures the amount of soiling at the end of the pre-rinse cycle, reusing water when it can, saving up to 20% for the entire wash.

ActiveWater technology: less water, less energy, more performance.

This innovative rinsing technology maximises efficiency and ensures environmentally friendly rinsing for excellent cleaning results. The water and energy is saved through targeted water distribution, optimised filter technology, faster heating and higher pump performance for increased water circulation.

The Child lock prevents unintended door opening.

For added safety, the door can be locked manually to prevent children from inadvertently opening the door. The buttons can also be locked to prevent tampering during operation.

EcoSilence Drive™: powerful, durable, quiet and efficient.

Our advanced motor has been built to provide you with maximum efficiency, economy, and durability while operating. EcoSilence Drive® wash and drain pumps work without brushes, resulting in energy efficiency, optimim wash results, and ultra-silent performance. Additionally, the drain pump cuts out as soon as the water is drained, avoiding any air intake and the loud ‘gurgle’ sound that comes with it.

Automatic programs ensure the best cleaning performance every time.

By choosing the automatic program, your dishwasher will assess how soiled the items are and adjust the program time and temperature accordingly. This provides best results while making the most of saving water and energy.

Glass Wash program: extra gentle for best cleaning, optimum drying and brilliant shine for glassware.

The Glass Wash program gently cleans glasses such as high-quality crystal stems while providing optimum drying and achieving a brilliant shine. This is made possible through a lower 40° wash temperature, an adjustment in the rinsing temperature and an extension of the drying period which reduces temperature shock to delicate glassware. Shiny glasses and residue-free drying are clear proof of a brilliant and gentle cleaning result.

Our quality guarantee: 10-year rust through warranty against interior rusting.

We have developed special surface treatments as well as production and joining technologies that are precisely tailored to the materials used in the interior of our dishwashers. We also use high-quality sheets of stainless steel. As a result, we are able to offer a 10-year warranty against interior rust-through on all of our dishwashers as standard.

AquaStop with 100% lifetime guarantee against water damage.

The AquaStop™ Plus system consists of a double-walled supply hose, a safety valve, as well as a floor sump with float switch, offering 100% protection against water damage. Guaranteed by Bosch.

DosageAssist™ ensures superior wash results.

Unique to Bosch, DosageAssist™ maximises the effectiveness of detergent tablets by dropping it into a specially engineered tray that is targeted by water jets, resulting in a tablet that dissolves evenly under control. For superior cleaning performance and a quieter wash.

Reviews

Additional Appliance Information

Capacity
  • 11 international place settings
Consumption rates
  • 3.5 energy rating, 4.0 WELS water rating
  • (based on Eco 45 °C program)
Wash Programs and Options
  • 6 Wash Programs:
    - Eco 45 °C
    - pots and pans 70 °C
    - Auto 45-65 °C
    - Glass 40 °C
    - Quick wash 45 °C
    - Pre-Rinse
Performance
  • Effortless door closing
  • 2 special options:
    IntensiveZone wash option, VarioSpeed™ - express wash option
  • ActiveWater hydraulic system
  • DosageAssist™: Maximises the effectiveness of detergent tablets. The tablet is dropped into a specially engineered tray and is completely dissolved. For superior cleaning performance and a quieter wash.
  • 4 stage filteration system
  • AquaSensor™ technology: Regulates the water usage depending on the type and degree of soiling
    LoadSensor technology: Provides for optimal water usage even for half loads or partial loads, saving water and electricity
  • AutoBrilliance™: Automatic detergent and rinse aid sensor
Flexibility
  • VarioFlex basket system
  • VarioDrawer™
  • RackmaticPlus™: 3-stage top basket can be adjusted to three height levels to maximise convenience
  • 2 foldable plate racks in top basket
  • 2 folding plate racks in lower basket
Convenience
  • Alternating spray-arm washing
  • 5 spray levels
  • Time remain display
  • Time delay start: Delay programme start time by 1-24 hours to suit your schedule
  • Electronic rinse aid indicator
  • Front-adjustable rear foot
  • Quiet operation 46 dB
Safety
  • AquaStop™ Plus: Water supply device with lifetime anti-flood protection
  • Child door lock
  • Childproof control lock
Design
  • 815 mm x 448 mm x 573 mm
Technical Information
General
Width of the product (mm) 448 mm
Height of the product (mm) 815 mm
Installation typology Built-under
Number of place settings 11
Water consumption 10.9 l
Total annual energy consumption 123.7 kWh
List of programmes Auto 45-65°C, Economy, Glass, pots and pans, Pre-Rinse, Quick wash
Additional operational options Intensive Zone, VarioSpeed
Digital countdown indicator
Noise level (dB) 46
3rd Rack 3rd Rack 1.1
Interior light
Removable top
Length electrical supply cord (cm) 175 cm
Length outlet hose (cm) 205 cm
Power consumption in off-mode (W) - NEW (2010/30/EC) 0.10 W
Power consumption in left-on mode (W) - NEW (2010/30/EC) 0.10 W
Duration of the left-on mode - NEW (2012/30/EC) (min) 0 min
Home Connect
Design
Control panel shape Bosch middle class
Color / Material body Lacquered
Color / Material panel Stainless steel, metallic
Construction type Built-in
Door panel options Not possible
Drying system Inherent heat
Height of the product (mm) 815 mm
Hidden heating element
Installation typology Built-under
Removable top
Tub material Stainless steel
Water softener (permanently deactivated/disabled)
Width of the product (mm) 448 mm
Size and weight
Height of removable worktop (mm) 0 mm
Number of Options 2
Adjustable plinth both horizontal and vertical
Net weight (kg) 33.802 kg
Programmes
Drying progress indicator Time remaining indicator front, water inlet
List of programmes Auto 45-65°C, Economy, Glass, pots and pans, Pre-Rinse, Quick wash
Name, programme 1 pots and pans
Name, programme 2 Auto
Name, programme 3 Economy
Name, programme 4 Glass
Name, programme 5 Quick Wash
Name, programme 6 Pre Rinse
Programme duration, programme1 (min.) 125-135
Programme duration, programme2 (min.) 90-150
Programme duration, programme3 (min.) 130
Programme duration, programme4 (min.) 85-90
Programme duration, programme5 (min.) 29
Programme duration, programme6 (min.) 15
Reference programme Eco
Number of different wash temperatures 4
Temperature, programme 1 (°C) 70
Temperature, programme 2 (°C) 45-65
Temperature, programme 3 (°C) 45
Temperature, programme 4 (°C) 40
Temperature, programme 5 (°C) 45
Temperature, programme 6 (°C) 0
Safety
Glass protection techn.
Surge-back protect. installed
Water protection system Total system
Consumption values
Glass protection techn.
Total annual energy consumption 123.7 kWh
Energy consumption (kWh) 0.56 kWh
Energy consumption, programme1 (kWh) 1.2-1.3
Energy consumption, programme2 (kWh) 0.7-1.3
Energy consumption, programme3 (kWh) 0.56
Energy consumption, programme4 (kWh) 0.75-.8
Energy consumption, programme5 (kWh) 0.7
Energy consumption, programme6 (kWh) 0.05
Water consumption, programme 1 (l) 11-14
Water consumption, programme 2 (l) 7-16
Water consumption, programme 3 (l) 10.9
Water consumption, programme 4 (l) 10-12
Water consumption, programme 5 (l) 9
Water consumption, programme 6 (l) 4
Water consumption 10.9 l
Maximum temperature for water intake (°C) 60 °C
Connection
Connection rating (W) 2,400 W
Length electrical supply cord (cm) 175 cm
Current (A) 10 A
Length inlet hose (cm) 165 cm
Length outlet hose (cm) 205 cm
Plug type AU plug

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

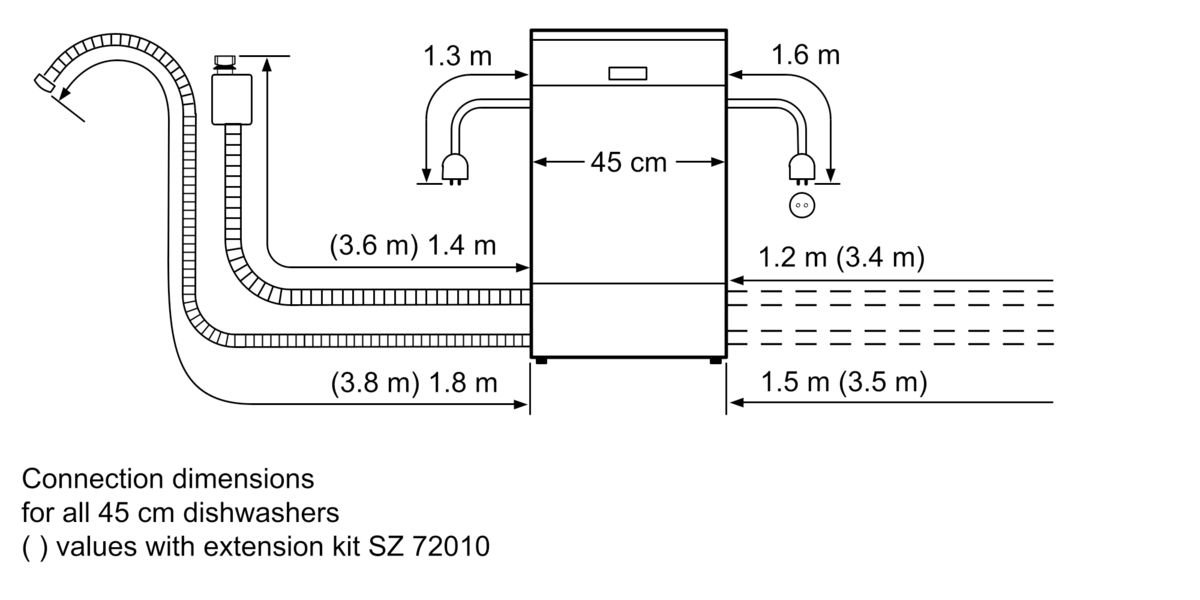

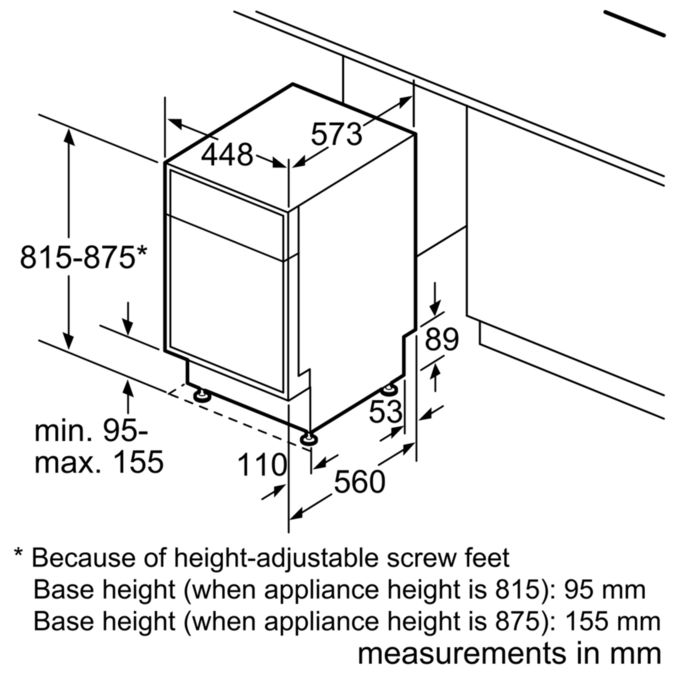

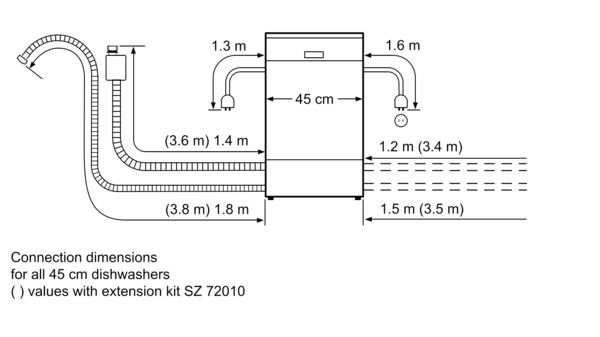

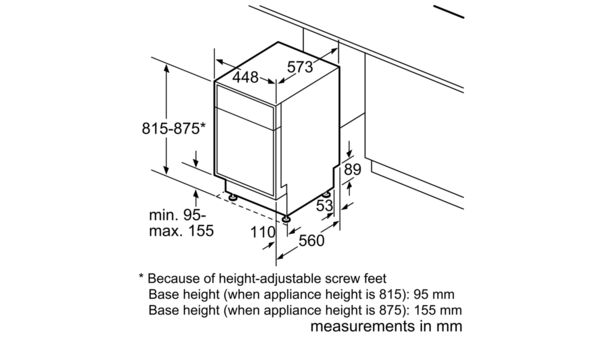

Dimensional Drawings
