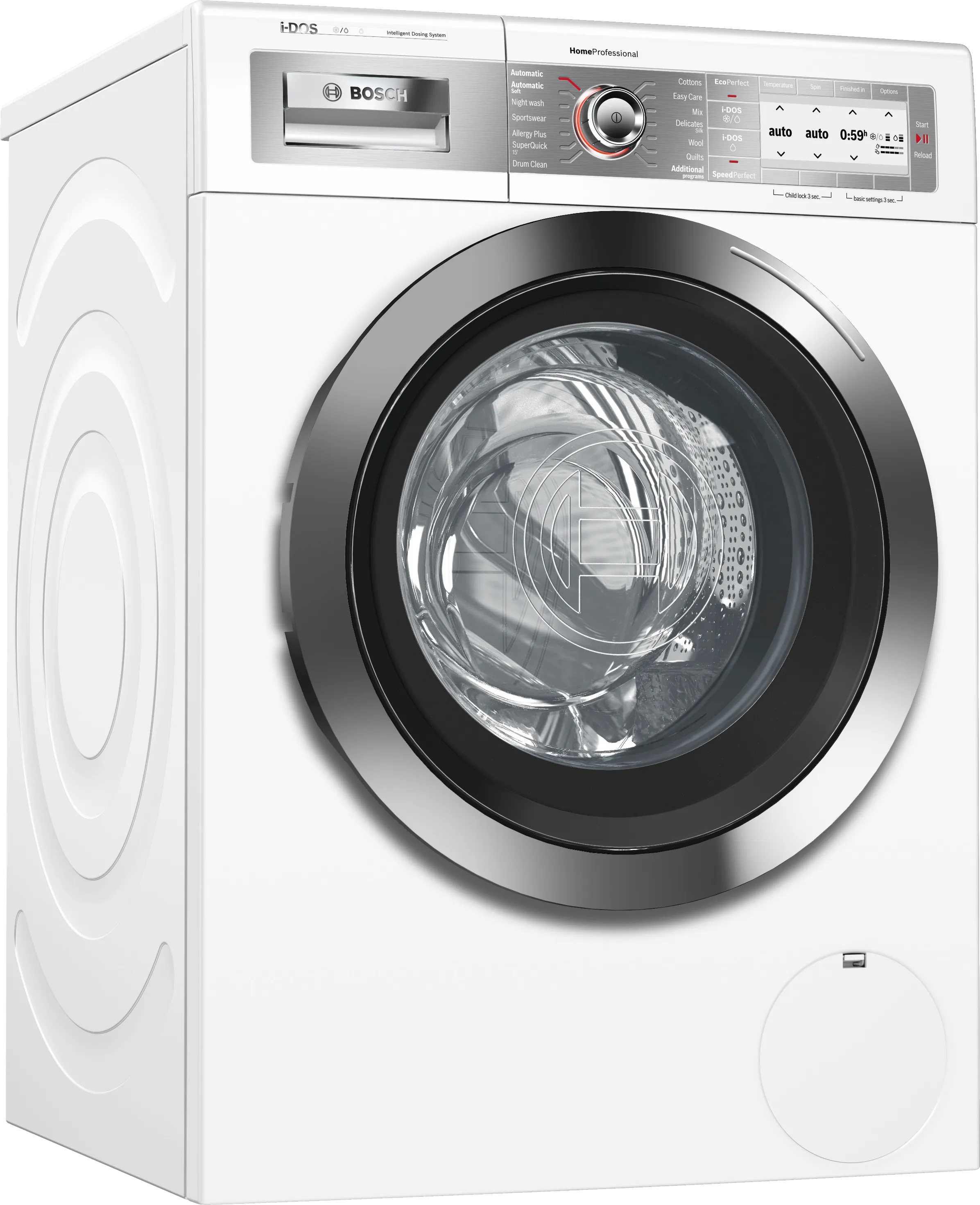

HomeProfessional Front Load Washing Machine

WAY32890AU


The washing machine with new design and intelligent automatic dosing system: precision dosing saves you water and detergent.

Highlights

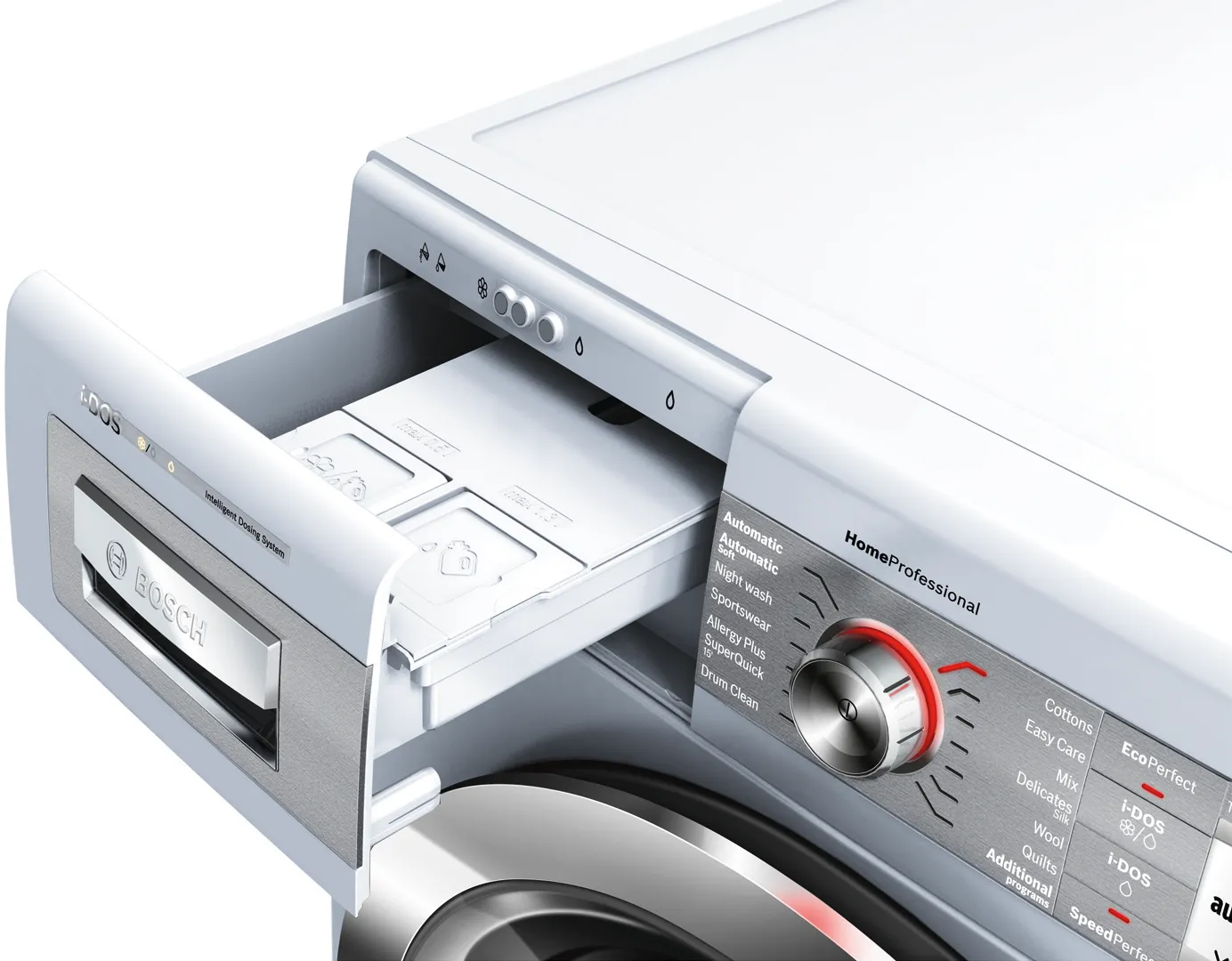

i-DOS detergent saver system: fine-tune the detergent amount with millilitre precision for optimal water use.

Save water by saving detergent: the unique intelligent i-DOS detergent saving system determines the precise amount of liquid detergent required for your wash. Special sensors detect the load weight and fabric type and even the degree of soiling in the automatic programmes. Your laundry will be washed with the optimal amount of detergent. Using too much detergent automatically results in increased water and energy consumption - that's no just bad for your laundry, it's also harmful to the environment.

ActiveWater Plus: Save money and protecting the environment thanks to the efficient water management.

ActiveWater Technology consists of three components: the sensor-controlled, continuous automatic load adjustment, the optimised water induction and the drum system. To avoid water wastage, the sensor adjusts the exact water consumption to the wash, according to the fabric type and quantity. The laundry is soaked faster and more evenly through the optimised water inflow which is particularly mild and gentle. Thanks to the VarioSoft or Vario drum and its droplet-shaped structure and paddles, the water gets distributed more evenly and faster. ActiveWater washing machines make a significant contribution to efficient water management in your home.

VarioPerfect: Washing more quickly or efficiently.

Through its perfect program range, VarioPerfect ensures top wash results for all types of fabrics and every load. With VarioPerfect, you can set most programs to be quicker or more efficient with the SpeedPerfect and EcoPerfect functions. This reduces time by up to 65% or energy by up to 50%.

AntiStain for reliable stain removal.

The AntiStain System easily removes the 16 of the most stubborn stains, ranging from chocolate to grass and red wine. The washing machine automatically adjusts the temperature, drum movement and soak time to relevant stains before the chosen program starts.

Wash programs designed to wash a reduced load with maximum efficiency.

Quick15 / Quick30‘ are short wash programs of approximately 15 minutes for up to 2 kgs of lightly soiled washing or a 30 minute wash program for up to 3.5kg. Powerwash 60 will give excellent wash results for up to 5kg of medium soiled laundry in just 60 minutes.

Start Delay for more flexibility.

With the 24h Start Delay, you can enjoy even more flexibility. You can preset the required time for the washing machine program to start. In this way, you can be absolutely certain that your washing will be finished exactly when you want.

Simple protection for the feed hose.

The simple AquaStop hose consists of a double-walled feed hose, a mechanical valve in the feed hose and a visual display. Water running out collects in the hose casing and causes a sponge to swell up, which then stops the flow of water mechanically.

Outstanding washing results thanks to optimum water distribution

This drum thinks for itself: The droplet-shaped structure and the size of the paddles ensure faster and more even water distribution – producing outstanding washing results.

Reviews

Technical Specifications

Consumption rates
  • 4.5 Water Star rating (WELS), 73 litres per wash on Cotton 60 Eco 1400 rpm
  • 4.5 Energy Star rating, 250 kWh per year
  • 73 litres water consumption per wash and 250kwH Energy consumption p.a. on Cotton 60C EcoPerfect 1600rpm
  • Noise level washing inon Cotton 60 EcoPerfect, 1600 rpm at full load in dB (A) re 1 pW: 47
Design
  • Intelligent Dosing System
  • TouchControl buttons: On/off, Spin speed selection, Time delay, Temperature, start/pause, SpeedPerfect, EcoPerfect, Prog 3 sec. and 24 h Time delay
  • TFT-cleartext display with high resolution for easy use with display of programme status indication, temperature selection, max. spin speed, remaining time, 24 h end time delay, further options, i-Dos selection and consumption indication
  • LED
  • 32 cm porthole, chrome, blackgrey with 180° opening door
  • magnet with pull-open latch
Programs
  • Special programmes: drain, rinse, spin, dark wash, curtains 30°C, Shirts, Sports/Fitness, Express 15, quick/mixture, automatic, automatic gentle, AllergyPlus / Hygiene, Duvet, MIX Silent/MIX Night wash, Drum clean with reminder, Wool, Delicates
Covenience and Safety
  • Maximum spin speed : 1600 rpm
  • i-DOS: automatic dosing of liquid detergent and softener or two different liquid detergents
  • VarioPerfect provides option for speed or energy efficiency for a perfect wash every time
  • VarioDrum's breakthrough wave-droplet design provides a thorough yet gentle clean for fine textiles
  • AntiVibration Side Panels reduce vibrations and ensure greater stability during the washing and spinning process
  • Unbalanced load detection
  • Foam detection to remove excessive foam
  • Sound insulation by bottom cover
Features
  • Automatic stain removal system
  • Yes / pause function
  • Self cleaning detergent drawer to remove detergent residue
  • DrumClean with reminder function
  • Start and reload function
  • Turbidity sensor
  • Flow-through sensor
  • Automatic load adjustment
  • Audiable end-of-cycle signal
Safety and Environment
  • AquaStop™ anti-flood protection system with magnetic valve and float switch
  • Child lock
Technical Information
  • 848 mm x 598 mm x 590 mm (632 mm with door frame)
Technical Specifications
General
Dimensions of the product (mm) 848 x 598 x 590 mm
Installation typology Free-standing
Max. spin speed 1,600
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Wash optimization AllergyPlus / Hygiene, Automatic, Automatic Soft, curtains 30°C, dark laundry, Drain, Duvet, EcoPerfect, Extra Rinse / Starching, i-DOS 1, i-DOS 2, ON, quick wash/mixture, rapid 15 min, shirts, SpeedPerfect, Spinning, Spin speed reduction, sports, start/pause, Temperature selection, Time delay
Digital countdown indicator
Start delay options Continuous
Noise level washing (dB(A) re 1 pW) 47
Noise level spinning (dB(A) re 1 pW) 73
Door hinge Left
Water protection system Aquastop
Hot & cold water intake
Interior light
Removable top
Length electrical supply cord (cm) 175
Connection
Length electrical supply cord (cm) 175
Frequency (Hz) 50 Hz
Hot & cold water intake
Plug type AU plug
Design
Color / Material body White
Color / Material panel White
Construction type Free-standing
Door hinge Left
Installation typology Free-standing
Loading type Front
Removable top
Tub material Plastic
Wheels
Size and weight
Capacity cotton (kg) 8.5
Depth with open door 90 degree (mm) 1,080
Dimensions of the product (mm) 848 x 598 x 590 mm
Drum volume (l) 65
Height-adjustable by 1.20
Net weight (kg) 83.0
Comfort
Programme end indication Acoustic, TFT Display
Loading sensor
Degree of dirtiness recognition
Digital countdown indicator
Drying progress indicator TFT Display
Noise level spinning (dB(A) re 1 pW) 73
Noise level washing (dB(A) re 1 pW) 47
Turbidity sensor
Start delay options Continuous
Self adjusting water level to load
Programmes
Cold wash option
Electronic After-sales Service
List of programmes Delicates programme, Easy-care programme, Whites and coloureds programme, Woollens hand wash programme
Cottons programme Standard cold - 90°C
Easy-care programme Standard cold - 60°C
Separate temperature control options Steps
Wash optimization AllergyPlus / Hygiene, Automatic, Automatic Soft, curtains 30°C, dark laundry, Drain, Duvet, EcoPerfect, Extra Rinse / Starching, i-DOS 1, i-DOS 2, ON, quick wash/mixture, rapid 15 min, shirts, SpeedPerfect, Spinning, Spin speed reduction, sports, start/pause, Temperature selection, Time delay
Water plus
Spinning
Max. spin speed 1,600
Spin speed options variable
Skip spin
Safety
Balance control available
Foam control
Water protection system Aquastop
Consumption values
Total annual energy consumption 250.0
Energy consumption kWh 30C delicates (kWh) 0.19
Energy consumption kWh 30C woollens (kWh) 0.19
Energy consumption kWh 40C colour (kWh) 1.20
Energy consumption kWh 40C easy care (kWh) 0.70
Energy consumption kWh 95C cotton (kWh) 2.60

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.
