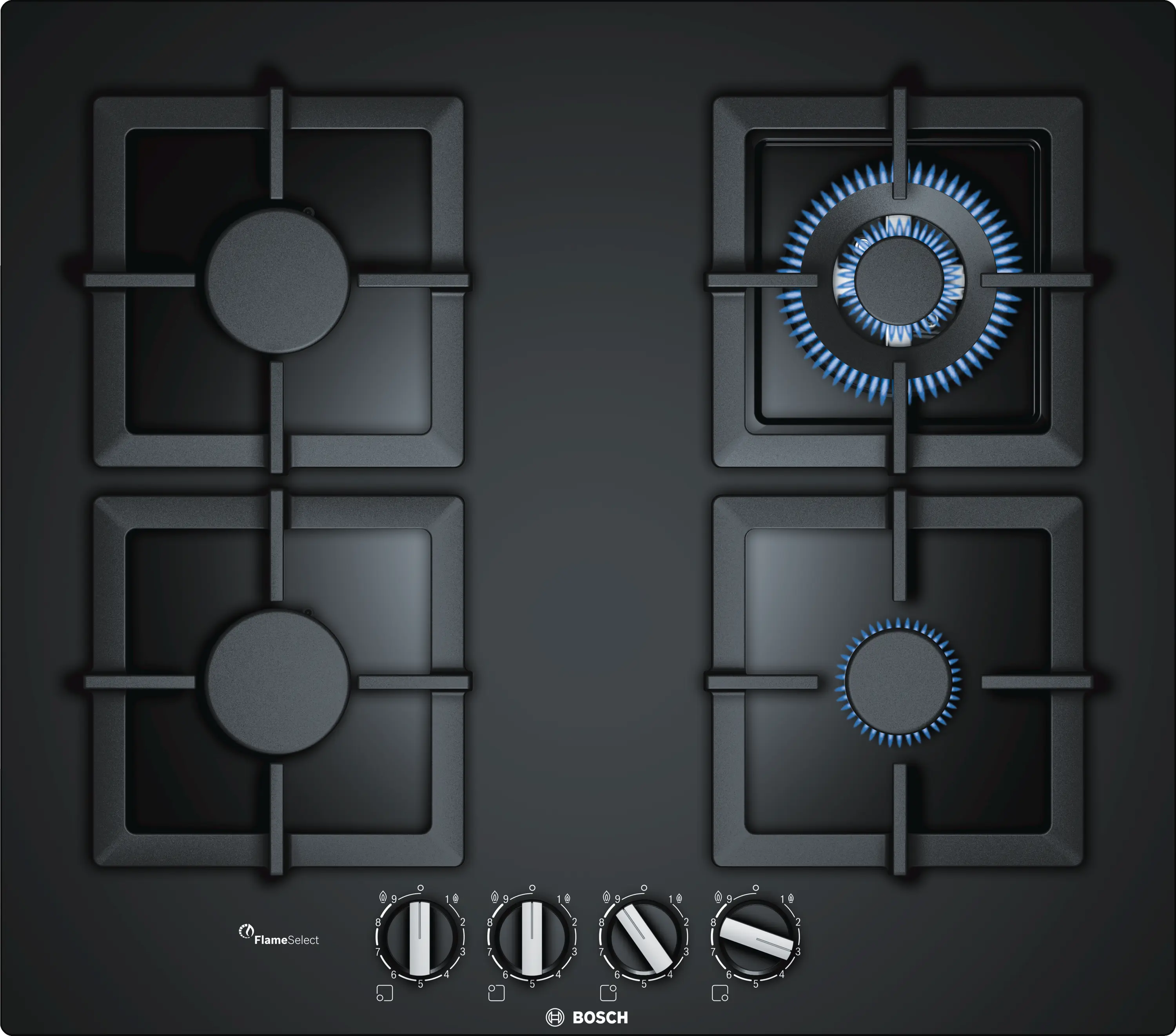

Serie | 6 60 cm Gas Cooktop, Tempered Glass, Black

PPH6A6B20A


The tempered-glass gas cooktop with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.

Reviews

Technical Specifications

Design
  • Black Tempered Glass
  • Frameless
  • Single pan supports, cast iron
Comfort & Convenience
  • FlameSelect (9 steps)
  • Sword control knobs
  • One hand electronic ignition
Power and size
  • 4 Gas Burners
  • 1 High-speed, 1 Standard, 1 Economy, 1 Wok burner
  • Dual wok burner
  • Left rear: Standard burner up to 6.85 Mj/h
  • Right rear: Wok burner up to 13.6 Mj/h
  • Left front: Standard burner up to 6.85 Mj/h
  • Right front: Economy burner up to 4 Mj/h
Safety and Environment
  • Flame failure device fitted to each individual burner
  • Nozzle presetting/main jet: Natural gas 10 mbar (Australian)
  • Suitable for natural gas (factory set-up) or LPG (via included conversion kit)
Dimensions
  • 60 cm width
  • Installation measurements: 560 mmx480 mm
  • Power cord length: 100 cm with plug
Supplied Accessories
  • Liquid gas nozzles (28-30/37mbar) included
Technical Specifications
General
Energy input Gas
Type of control setting and signalling devices sword knobs
Features FlameSelect, Wok burner
Design
Color of frame Black
Color of surface Black
Construction type Built-in
Number of electric plates 0
Number of electric cooking zones 0
Type of frame Flush w surrounding surfaces
Number of gas burners 4
Number of halogen plates 0
Installation typology Built-in
Type of pan support Elongated cast iron pan support
Total number of positions that can be used at the same time 4
Number of radiant plates 0
Number of electric warming zones 0
Size and weight
Dimensions of the product (mm) 45 x 590 x 520 mm
Net weight (kg) 14.0 kg
Cooking zone 1
Type of heating element Gas
Cooking zone 2
Location of 2nd heating element center left
Cooking zone 3
Location of 3rd heating element back left
Type of 3rd heating element Gas
Cooking zone 4
Location of 4th heating element middle back
Cooking zone 5
Location of 5th heating element back right
Type of 5th heating element Gas
Cooking zone 6
Location of 6th heating element center right
Safety
Type of safety device for gas Electromagnetic for each burner
Power on indicator
Residual heat indicator without
Main on/off switch
Connection
Length electrical supply cord (cm) 100
Electrical connection rating (W) 1 W
Energy input Gas
Frequency (Hz) 50 Hz
Gas connection rear, right
Gas connection rating (W) 8,000
Accessories
Included accessories 1 x cross support for espresso, 1 x WOK attachment ring

Download Manual

Here you can download the manual for your home appliance or view it on the screen.

Download Product Information

Technical details and information about all the comfort, efficiency, performance and security features, refer to the product characteristics.

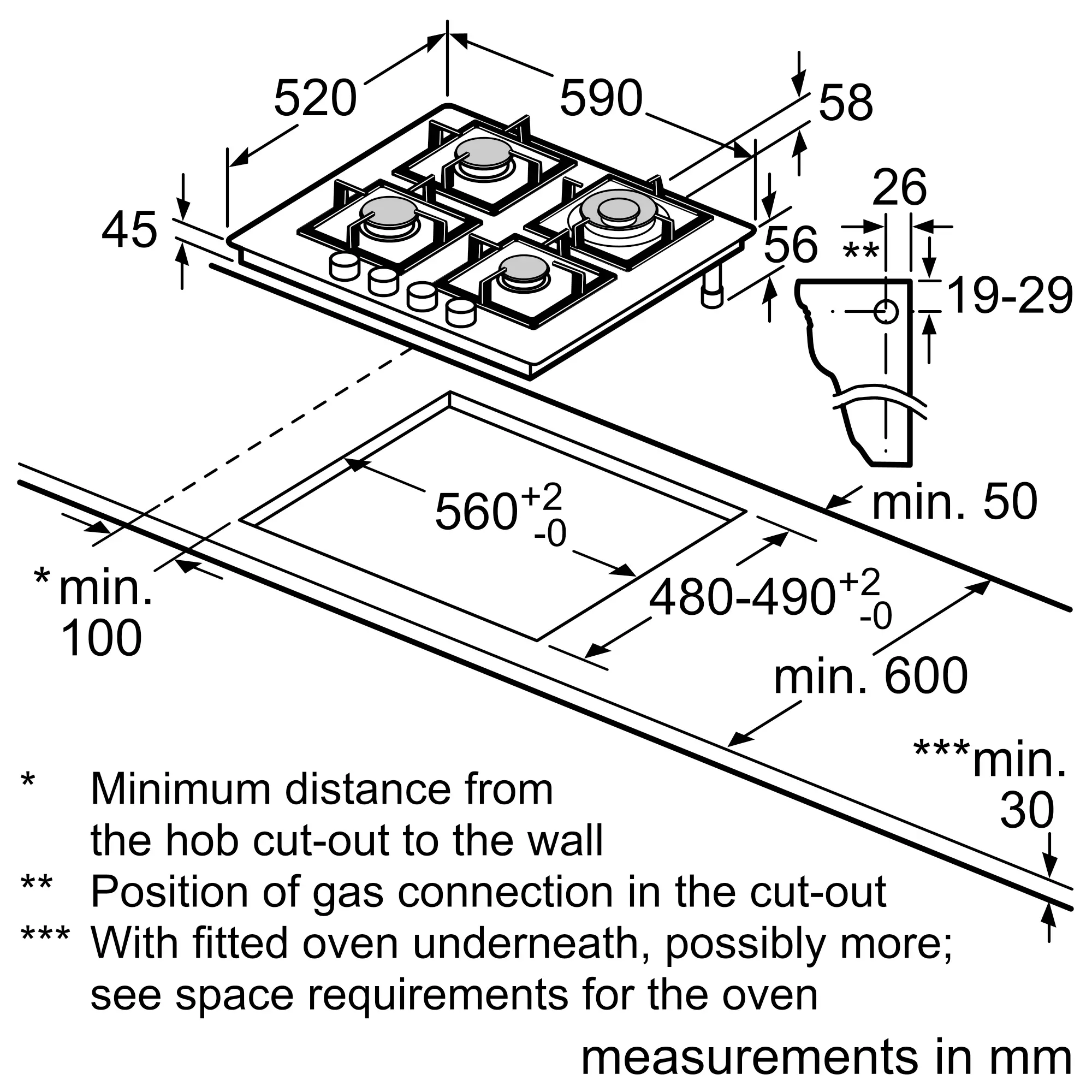

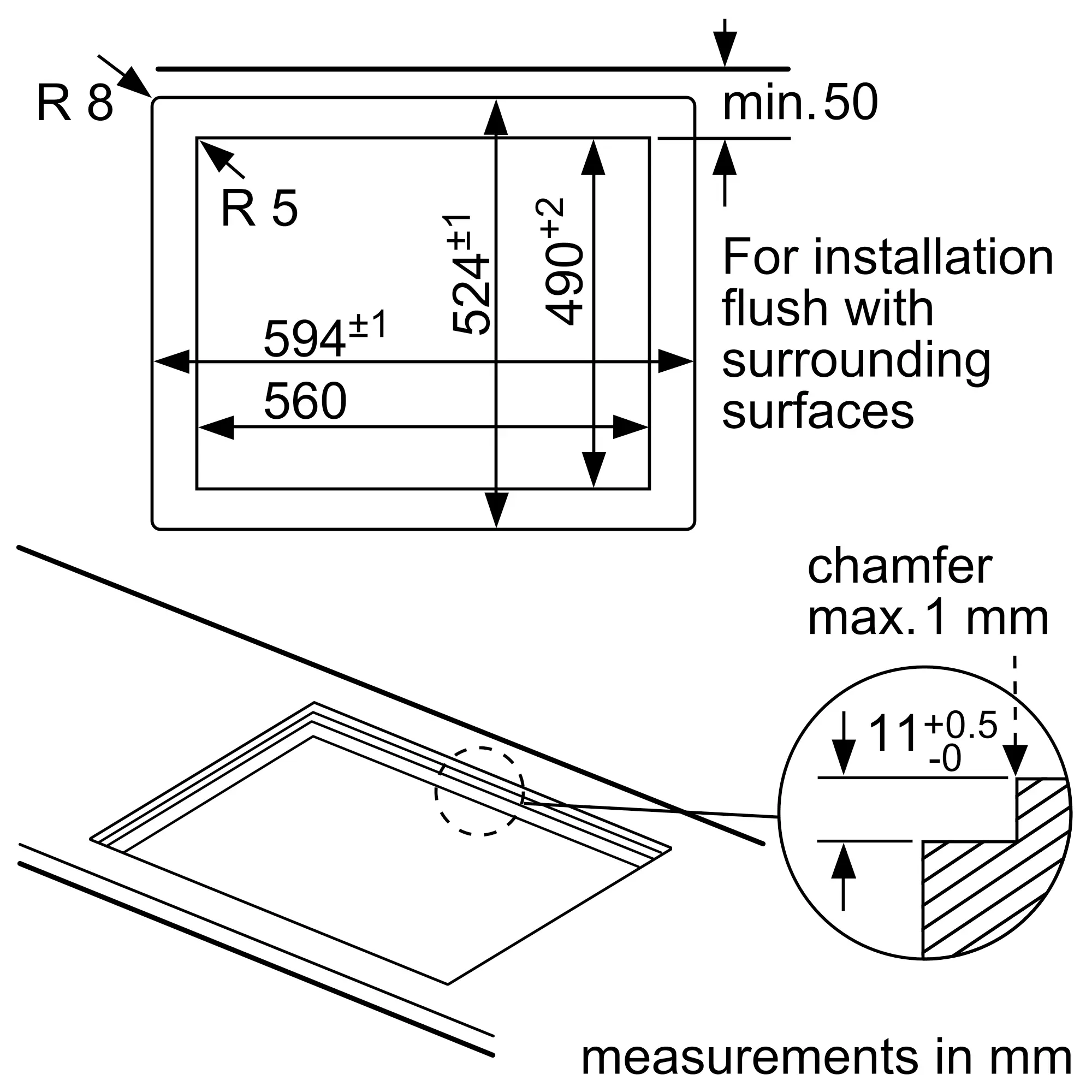

Dimensional Drawings
